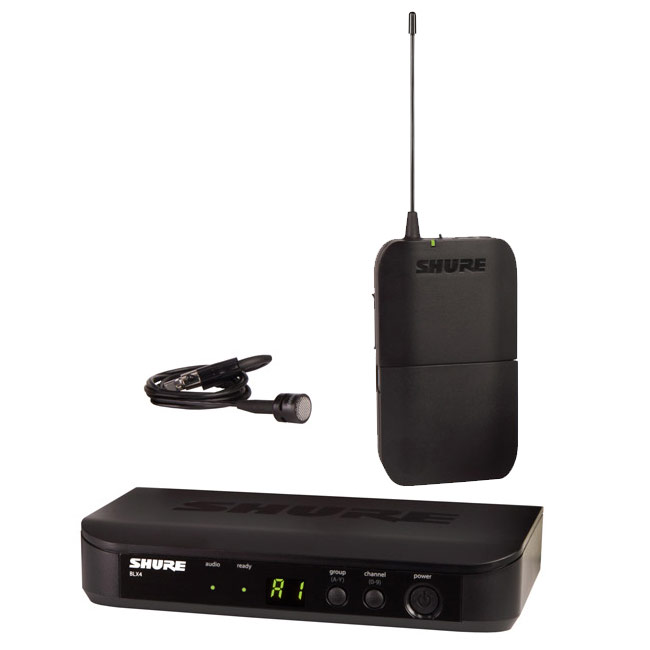

Shure BLX14/W85 Lavalier Wireless System





MSSBLX14/W85
BLX4 single channel wireless receiver; BLX1 bodypack transmitter; WL185 cardioidcondenser lavalier microphone with windscreen and tie clip; padded zipper case; PS23 power supply and URT2 rack tray (optional accessories).
favorite_border Add to Wishlist
favorite_border Added to the Wishlist
Starts from ₹/month View plans
Reviews (0)
About Shure BLX14/W85 Lavalier Wireless System

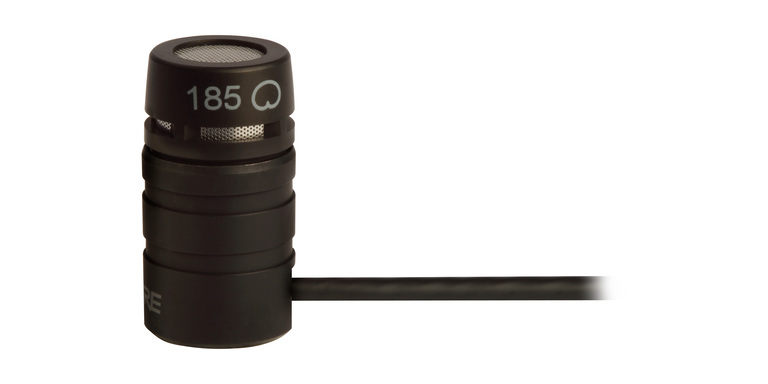

WL185 Supercardidioid Lavalier Microphone
Features
WL185 (Cardioid): Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise. Use of windscreen highly recommended. Pickup angle: 130 degrees.

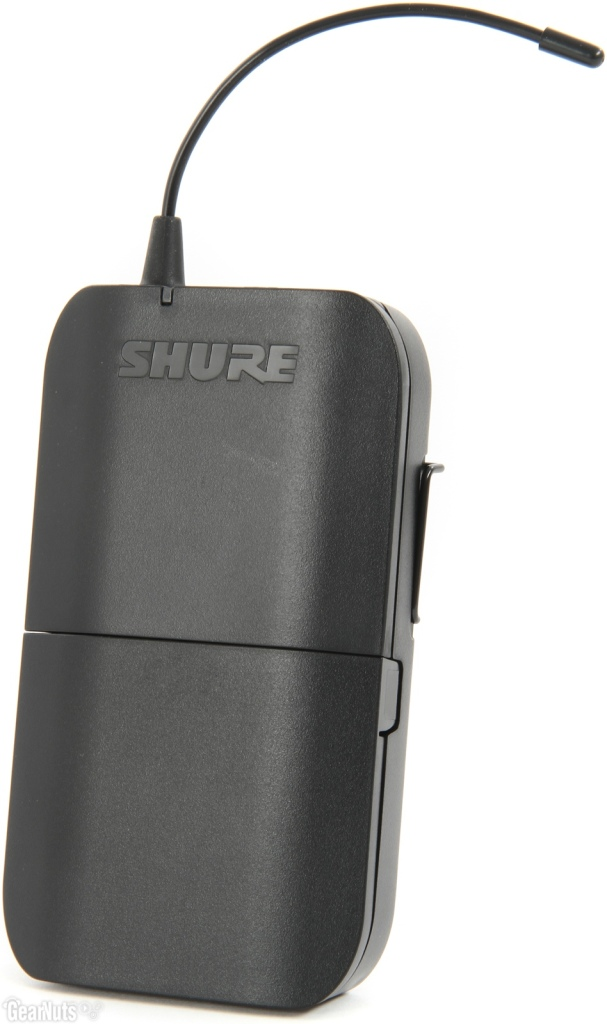

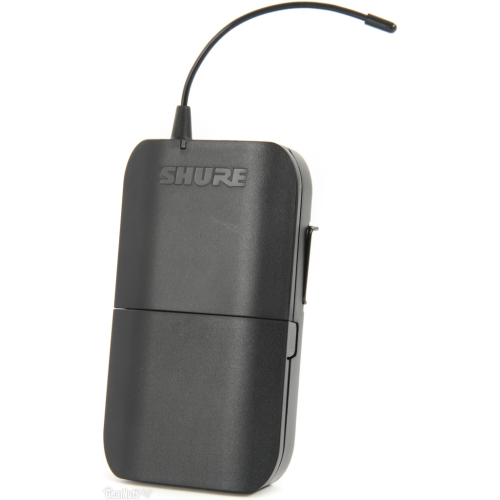

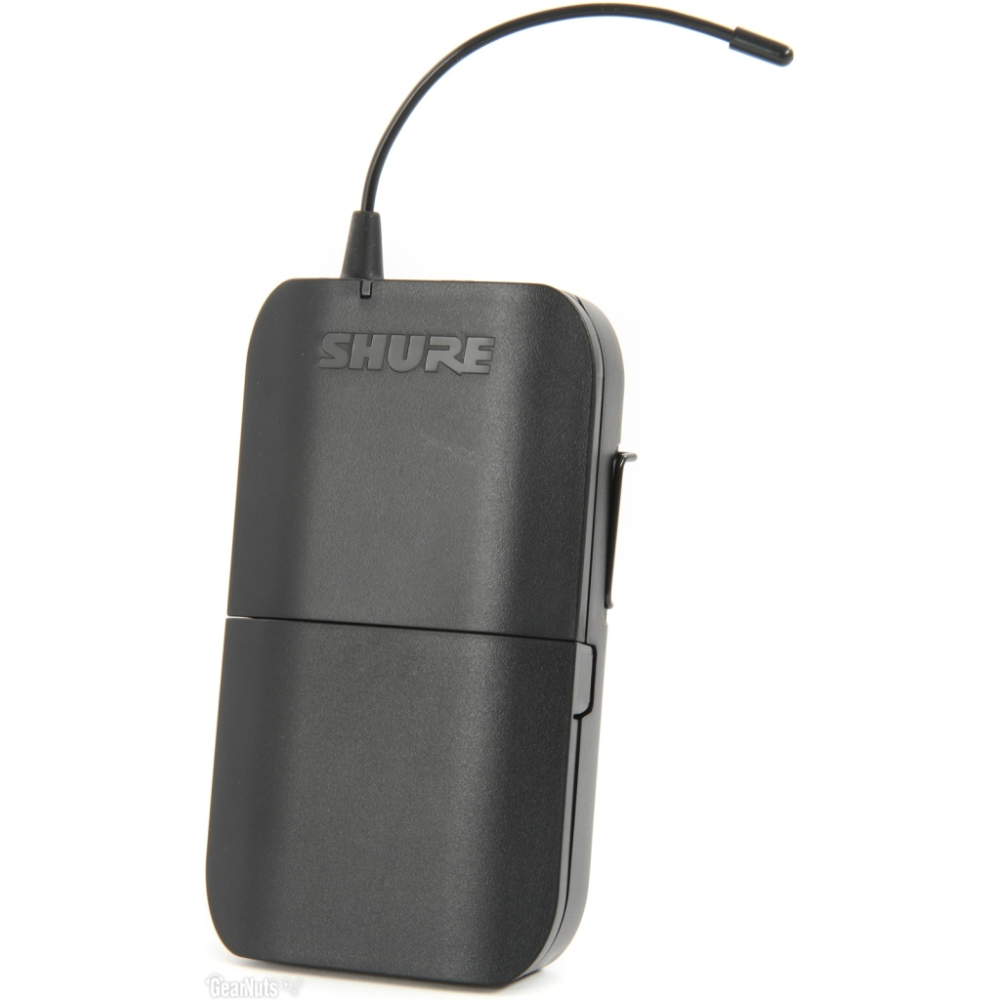

BLX1 Bodypack Transmitter
Features
- Up to 14 hours of continuous use with 2 AA batteries (included)
- Up to 300 ft (100 m) transmission radius
- Quick and easy receiver frequency matching
- TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
- Toggle on/off switch
- Adjustable gain control of 26dB (+10 to -16dB)
- Lightweight, rugged construction
Specifications
- Transmitter Type: Bodypack

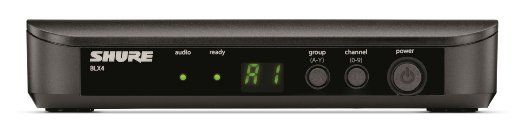

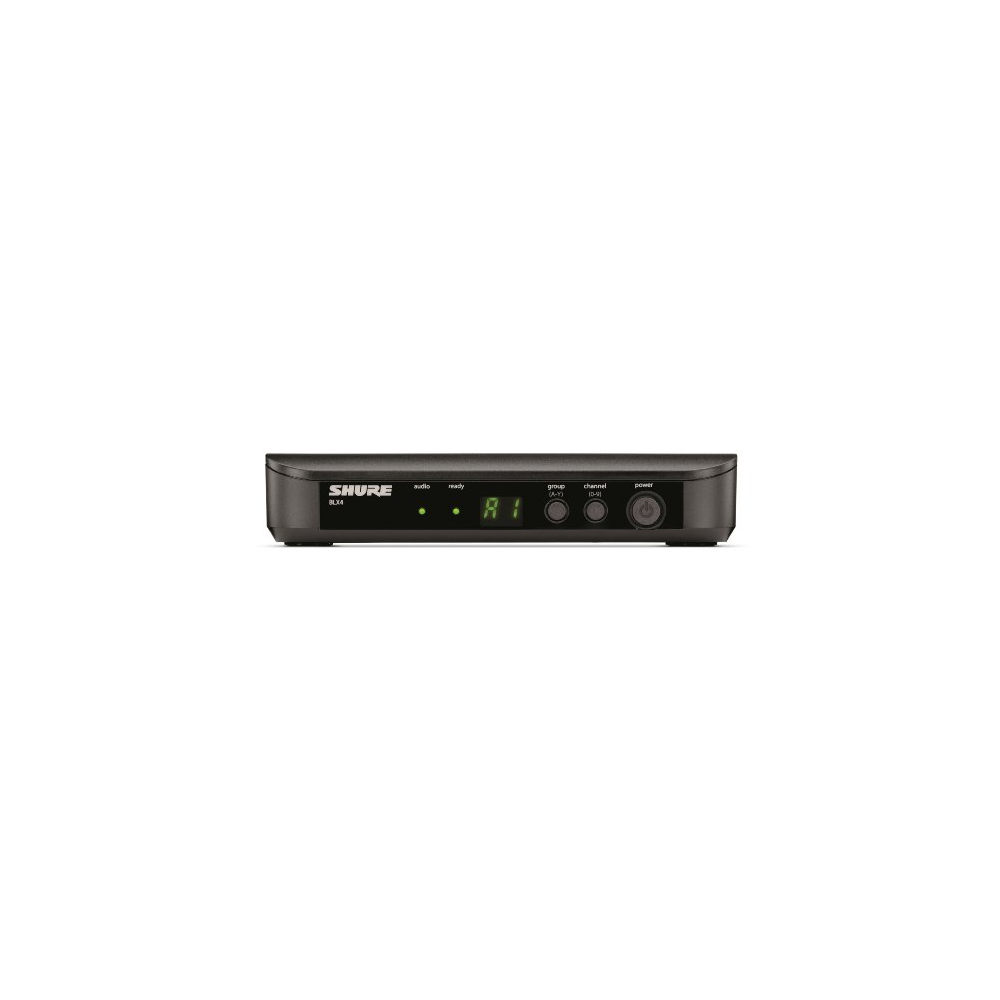

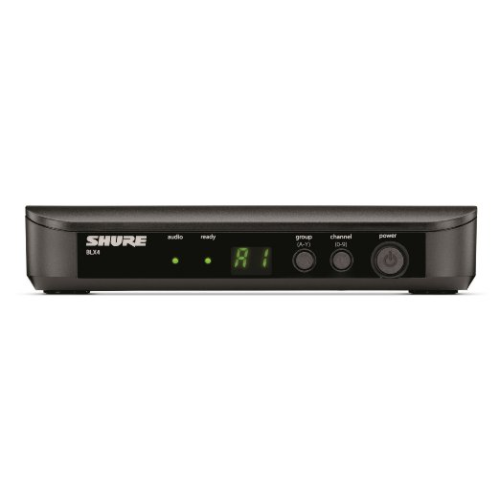

BLX4 Single Channel Receiver
Features
- One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
- Up to 12 compatible systems per frequency band (region-dependent)
- XLR and ¼” output connectors
- Microprocessor-controlled internal antenna diversity
- Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)
Specifications
- Output Impedance
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50 Ω - Audio Output Level
Ref. ±33 kHz deviation with 1 kHz tone
XLR connector: –27 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load) - RF Sensitivity
-105 dBm for 12 dB SINAD, typical - Image Rejection
>50 dB, typical - Dimensions
40 mm X 188 mm X 103 mm (H x W x D) - Weight
241 g (8.5 oz.) - Housing
Molded ABS - Power Requirements
12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
